Product Code£º
infrared sensor
Specifications£º


¡¡¡¡¡¡


infrared sensor

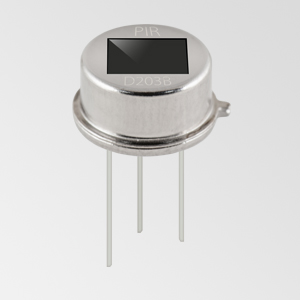

Product Name: infrared sensor d204b (analog dual plug-in package)



Product model: d204b



Product information: Click to download (please refer to product information for details)



Product features: analog dual plug-in package, anti electromagnetic interference, large induction angle.

Product introduction

Product Description

Window size: 5 * 3.8mm

Infrared receiving electrode: 2 * 1mm, 2elements

Package TO-5

The receiving wavelength is 5-14 µ M

Transmittance = 75%

Output signal peak value [Vp-p] = 3500mv

Sensitivity = 3300v / W

Detection rate (d *) 1.4 × 108cmhz1 / 2 / W

Noise peak value [Vp-p] < 70mV

Output balance < 10%

Source voltage: 0.3 ~ 1.2V

Power supply voltage: 3 ~ 15V

Working temperature range - 30 ~ 70 ° C

Storage temperature range - 40 ~ 80 ° C

Incident angle diagram

Equivalent circuit diagram
